Push-pull couplings BG3 holder 6+1
Base plates are offered here for three double-acting control devices and an additional pressure-free return or up to six single-action control devices with an additional pressure-free return.

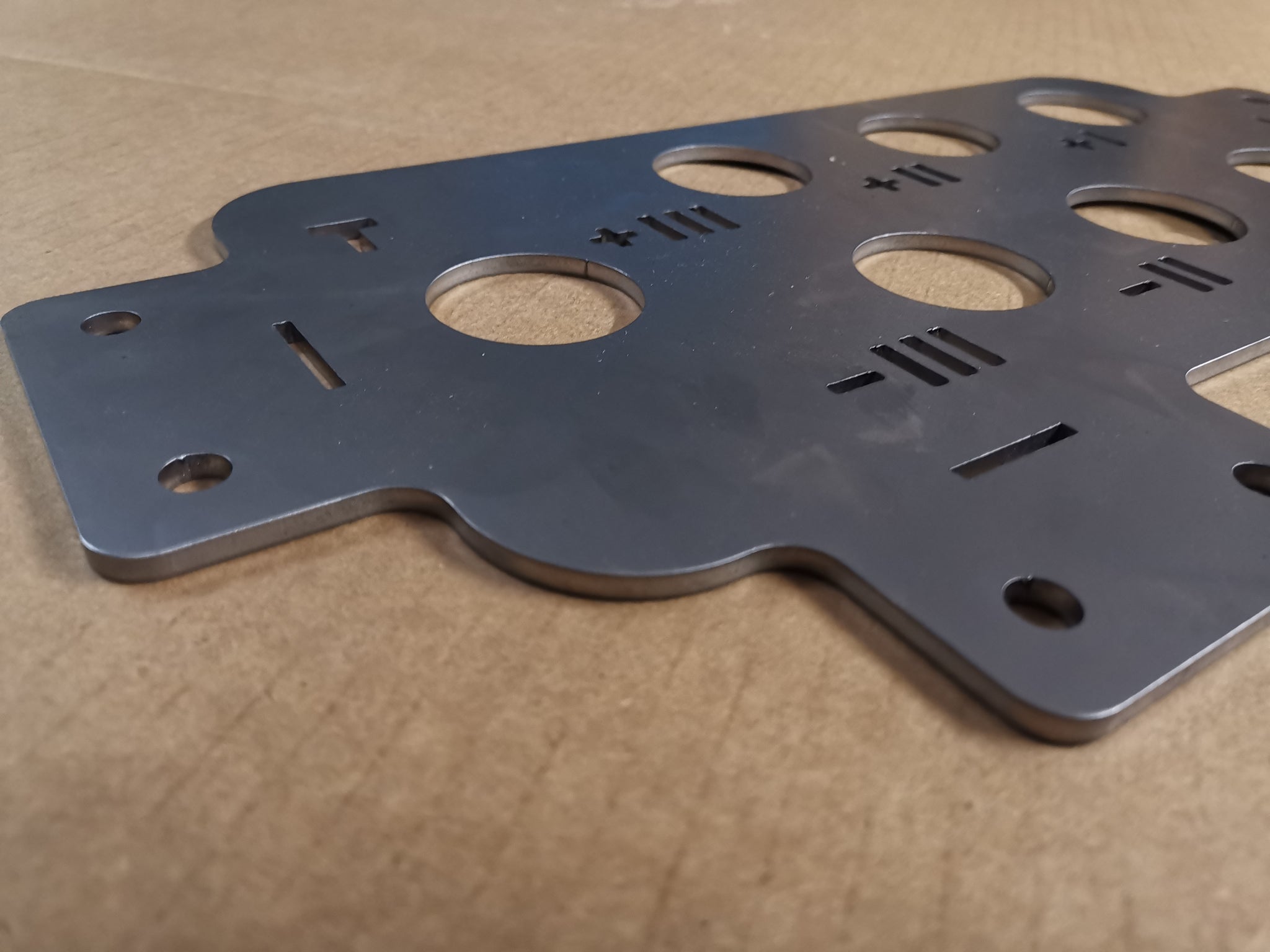

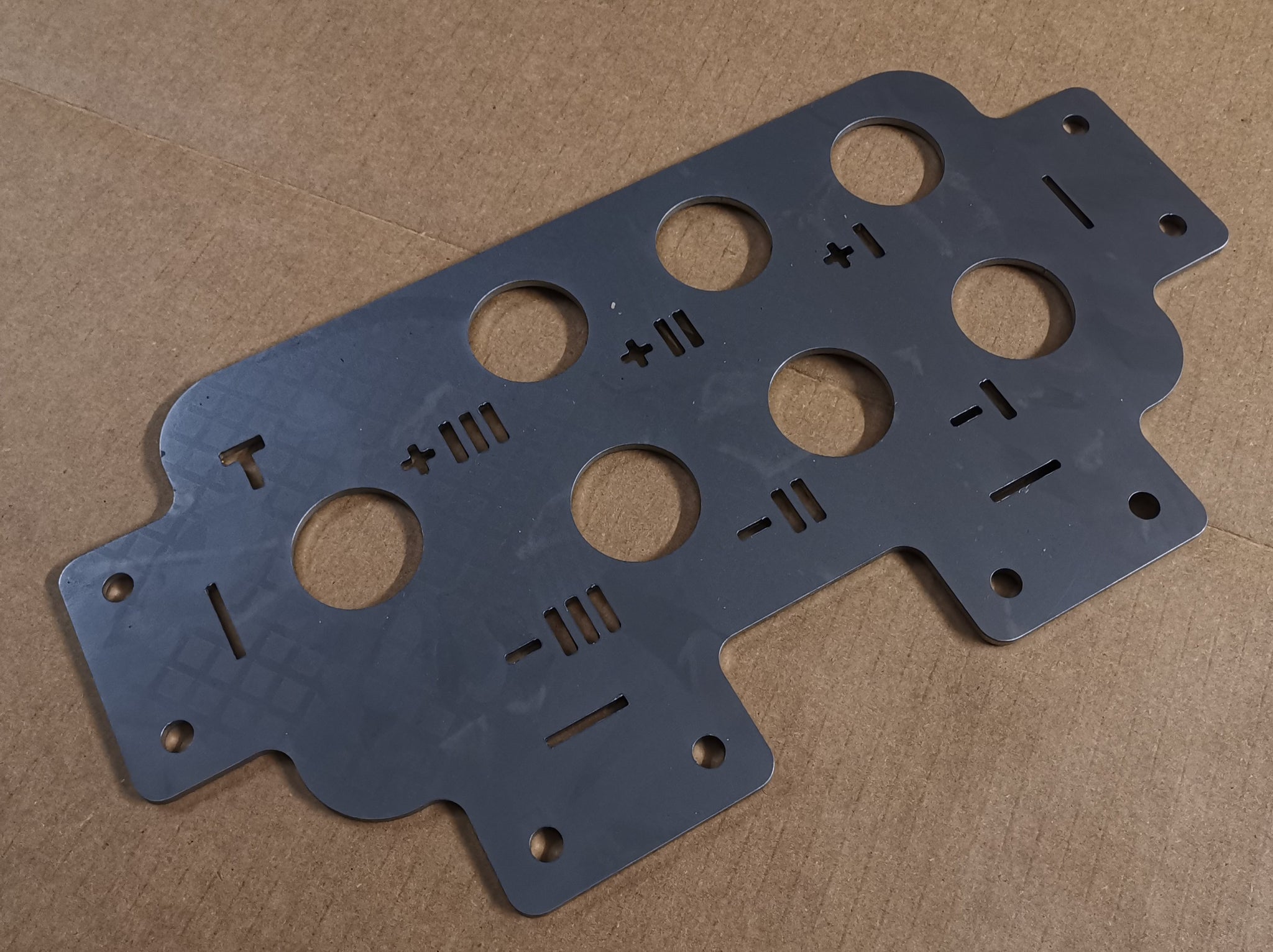

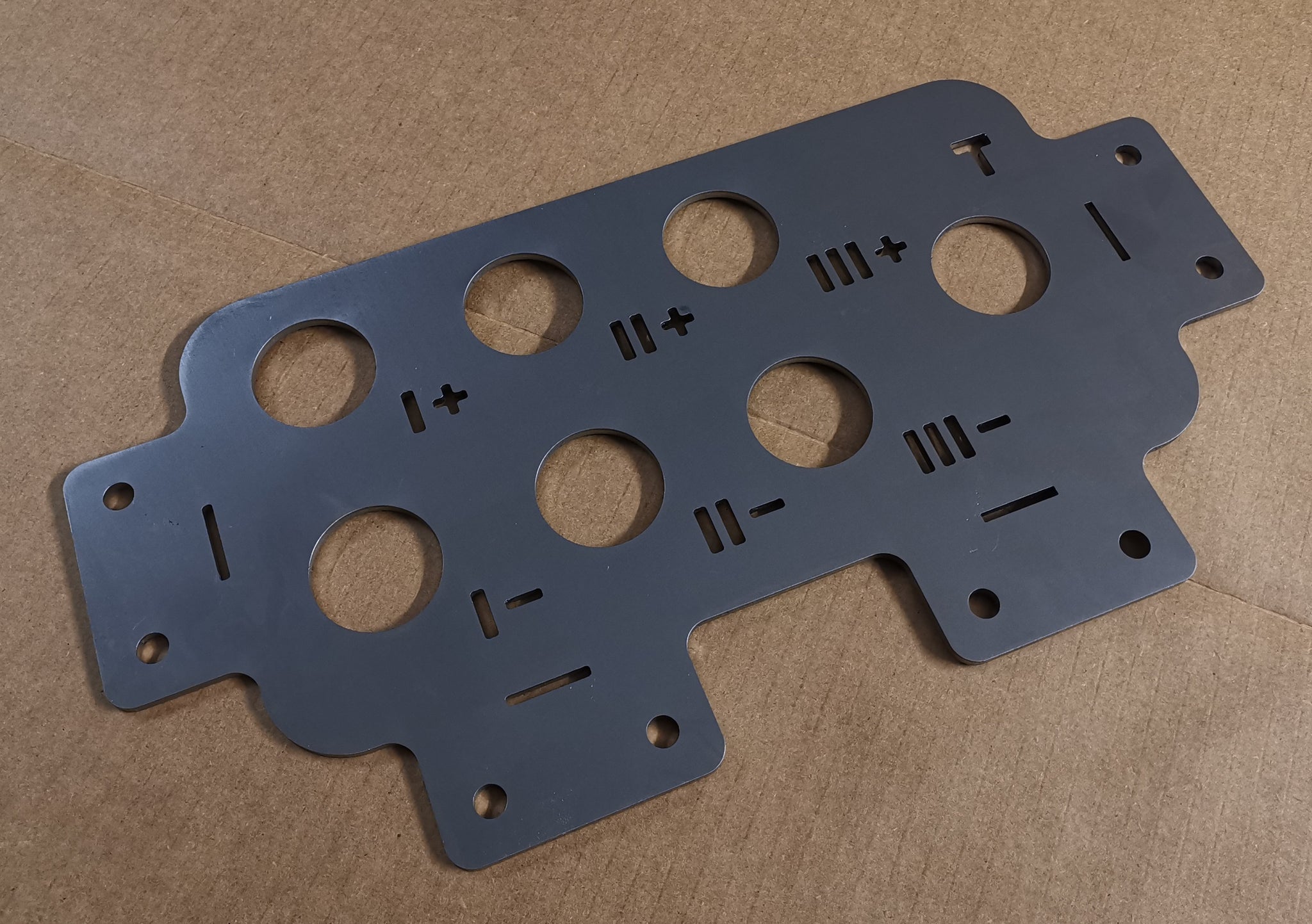

This base plate enables the push/pull function of the plug-in couplings to be used correctly. For this purpose, the plug-in couplings with locking rings are mounted on the sheet metal so that they can rotate freely.
Now the plugs can only be inserted into the sockets by pulling or pushing.
This also ensures a tear-off function.
The base plate can be mounted in different positions and bent on the vice with reasonable quality thanks to the relief slots.
Fasteners that are not required can then be cut off.
Technical data:
- Sheet steel S235
- 4mm material thickness
- Laser cutting (with oxygen)
- Basic dimensions: 270x195mm
This base plate enables the push/pull function of the plug-in couplings to be used correctly. For this purpose, the plug-in couplings with locking rings are mounted on the sheet metal so that they can rotate freely.
Now the plugs can only be inserted into the sockets by pulling or pushing.
This also ensures a tear-off function.
The base plate can be mounted in different positions and bent on the vice with reasonable quality thanks to the relief slots.
Fasteners that are not required can then be cut off.
Technical data:
- Sheet steel S235
- 4mm material thickness
- Laser cutting (with oxygen)
- Basic dimensions: 270x195mm
