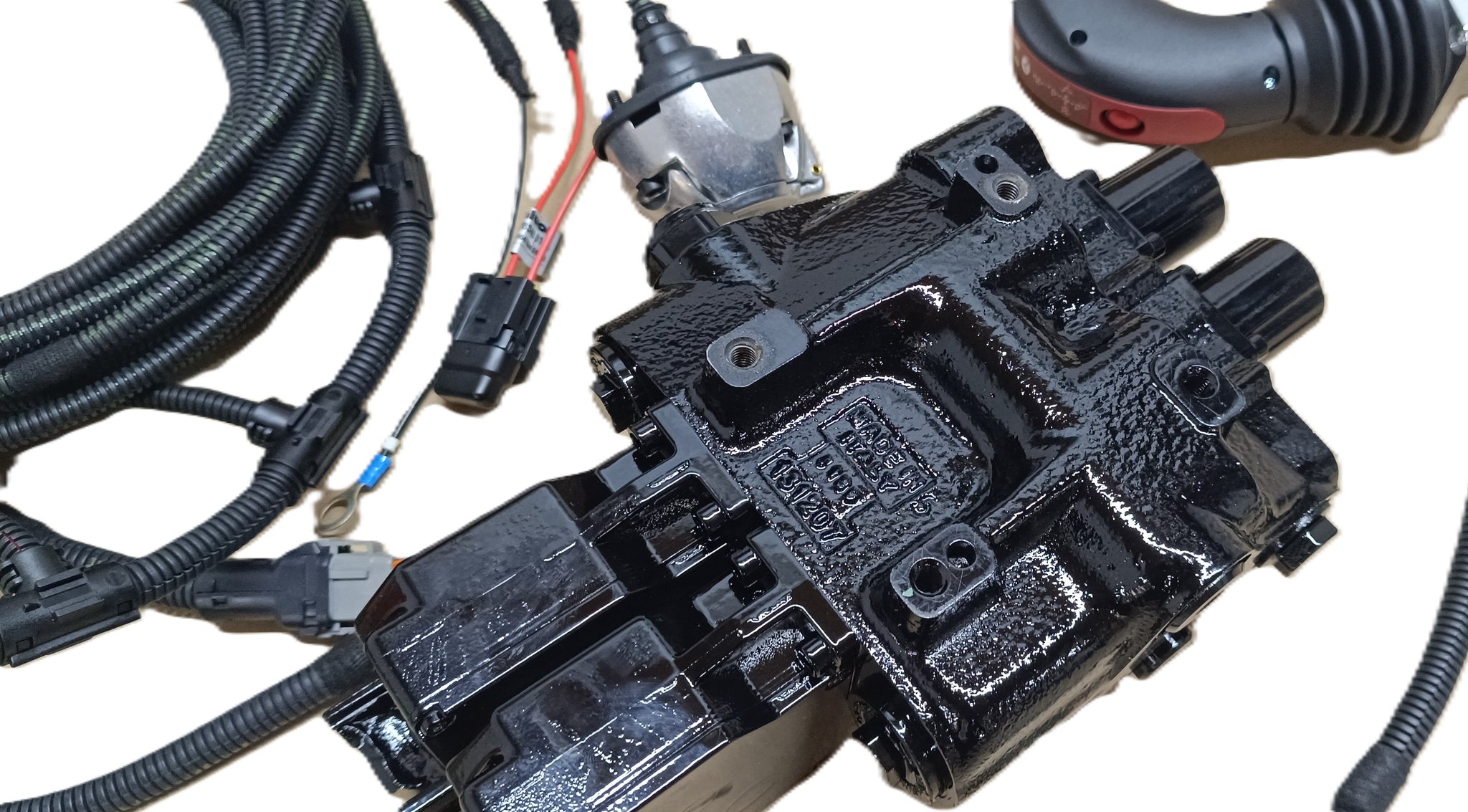

Electrically proportional monoblock valve in a complete set
Electrically proportional front loader control units are offered here in a complete set for ready-to-install installation.

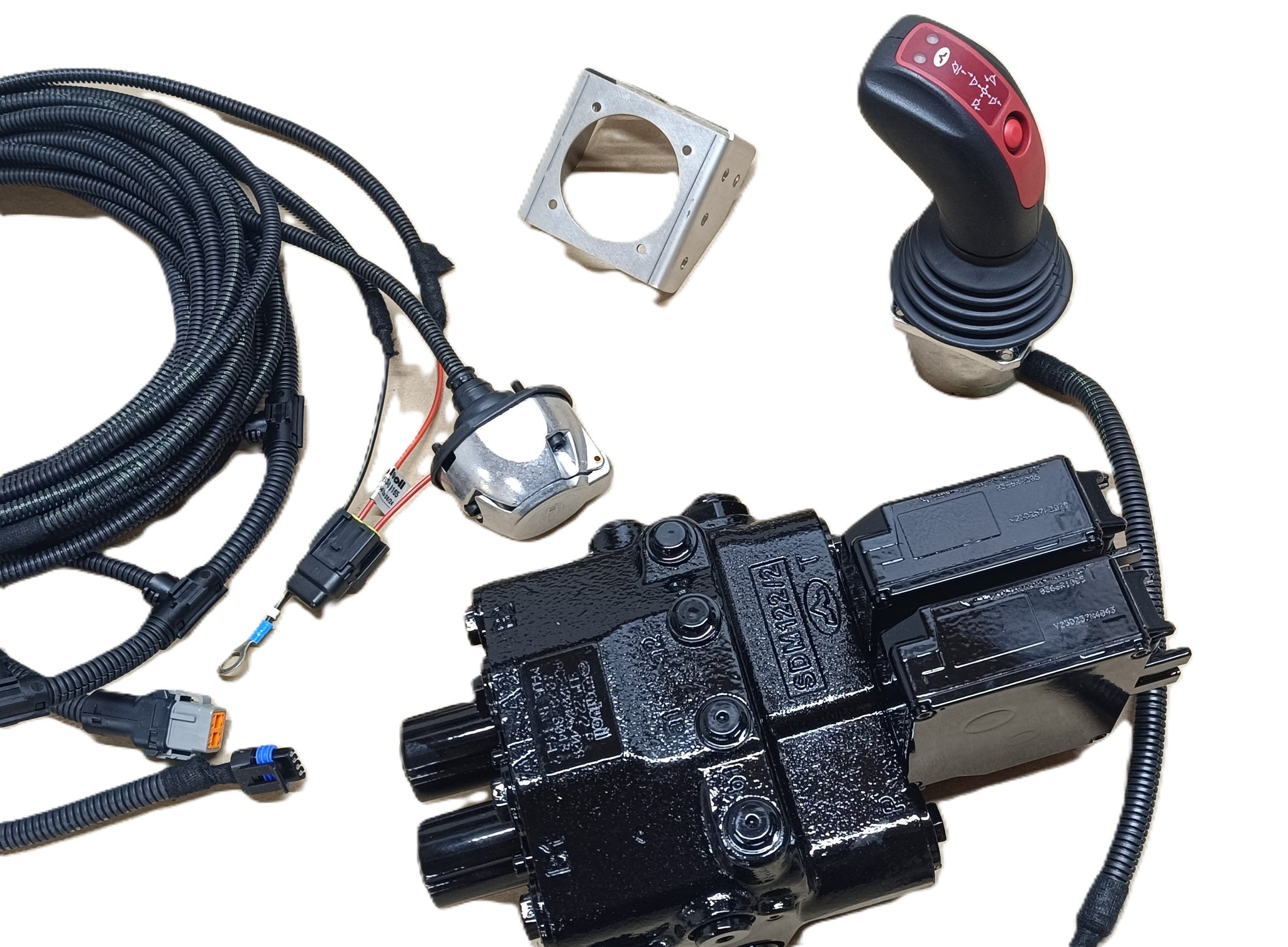

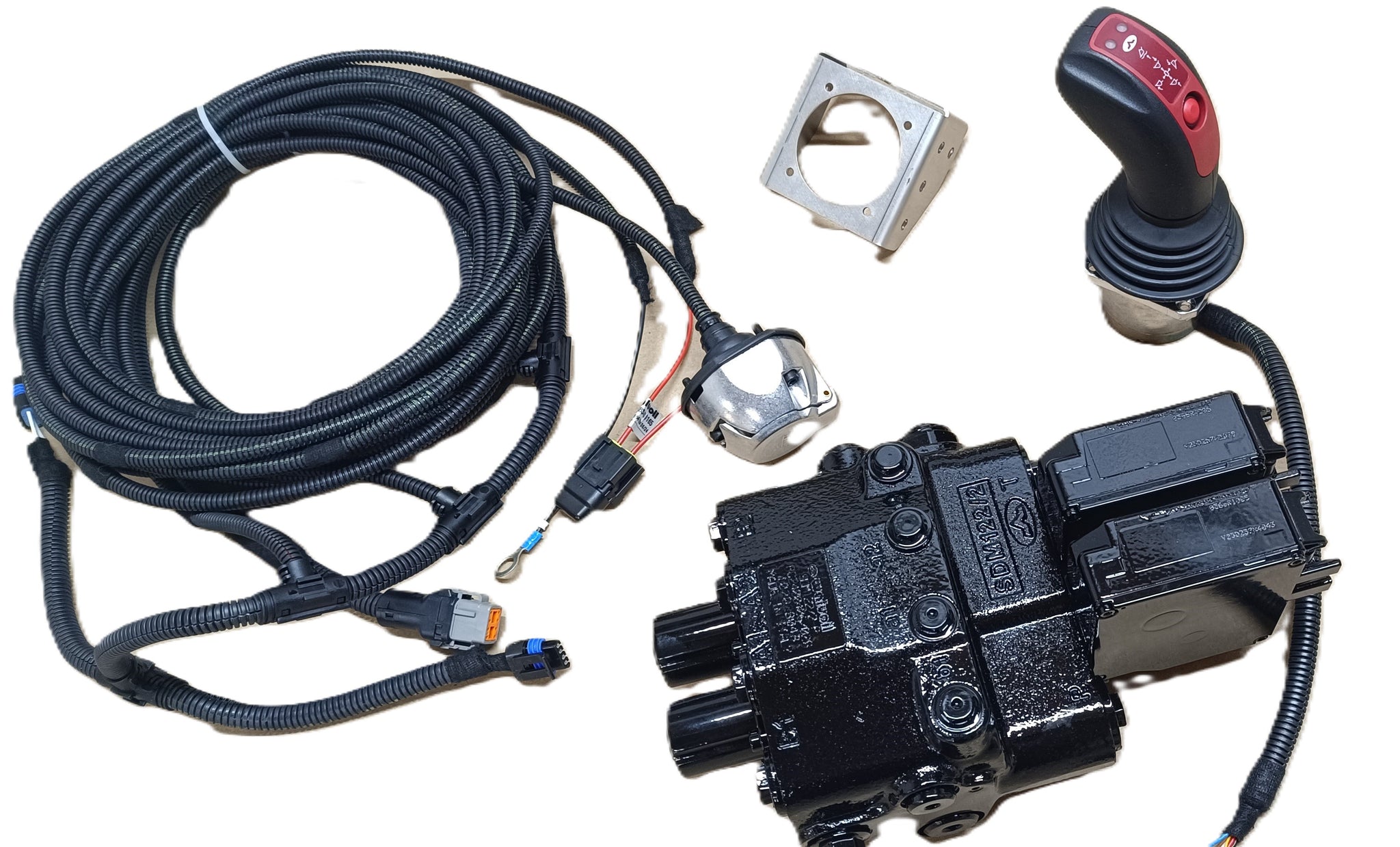

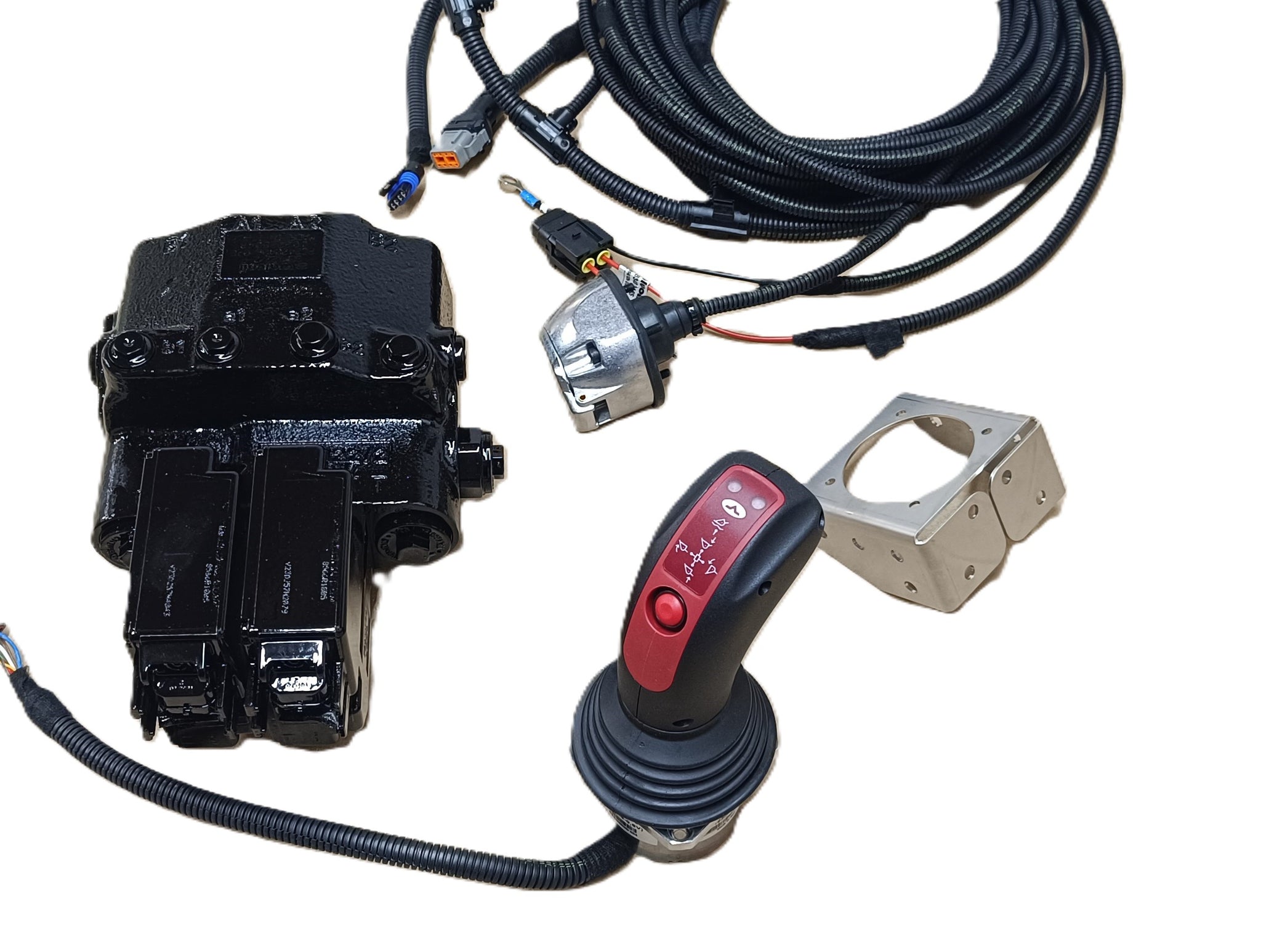

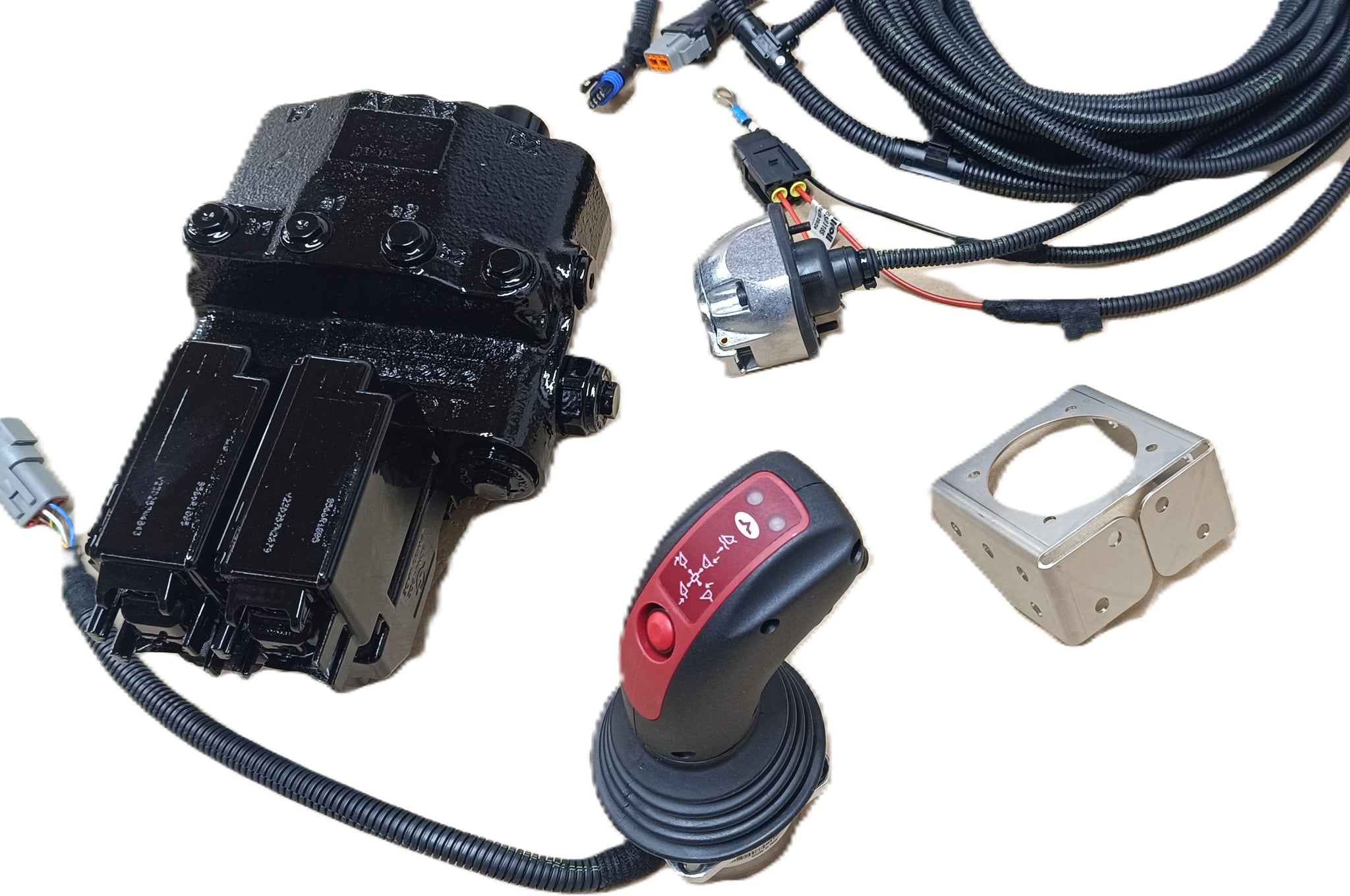

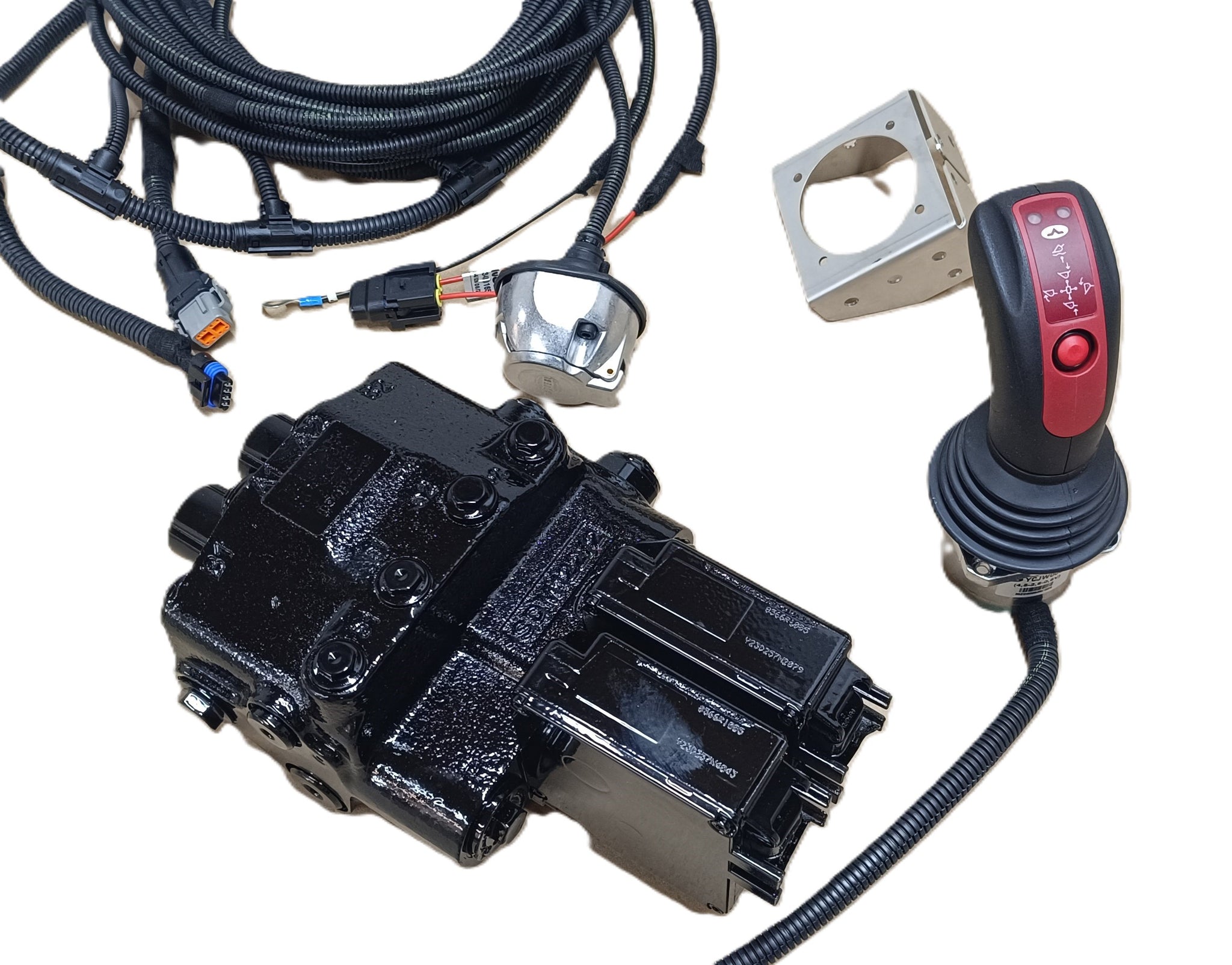

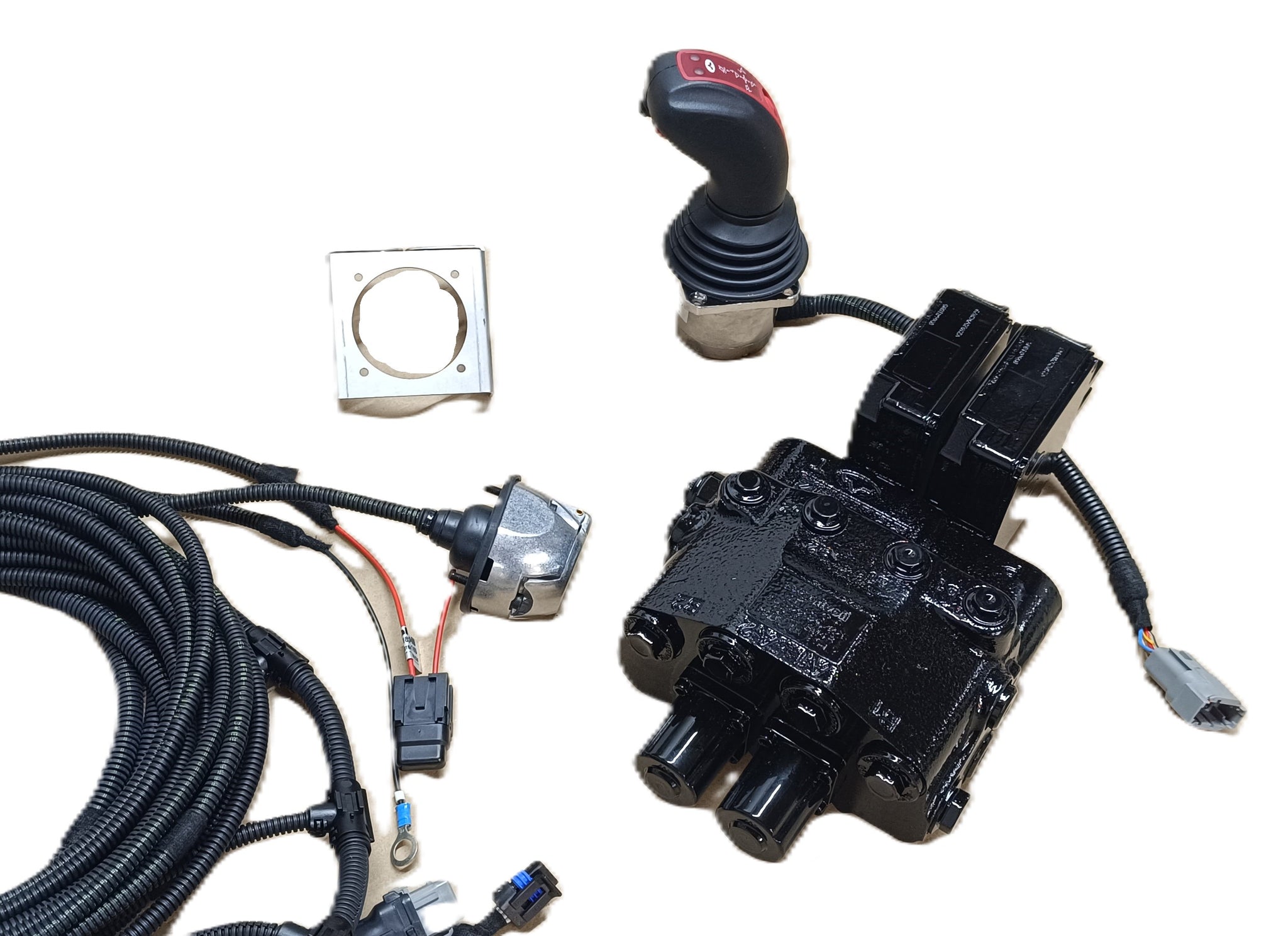

The set includes a joystick, valve and the associated cable set.
These are very high quality OEM components from Walvoil.

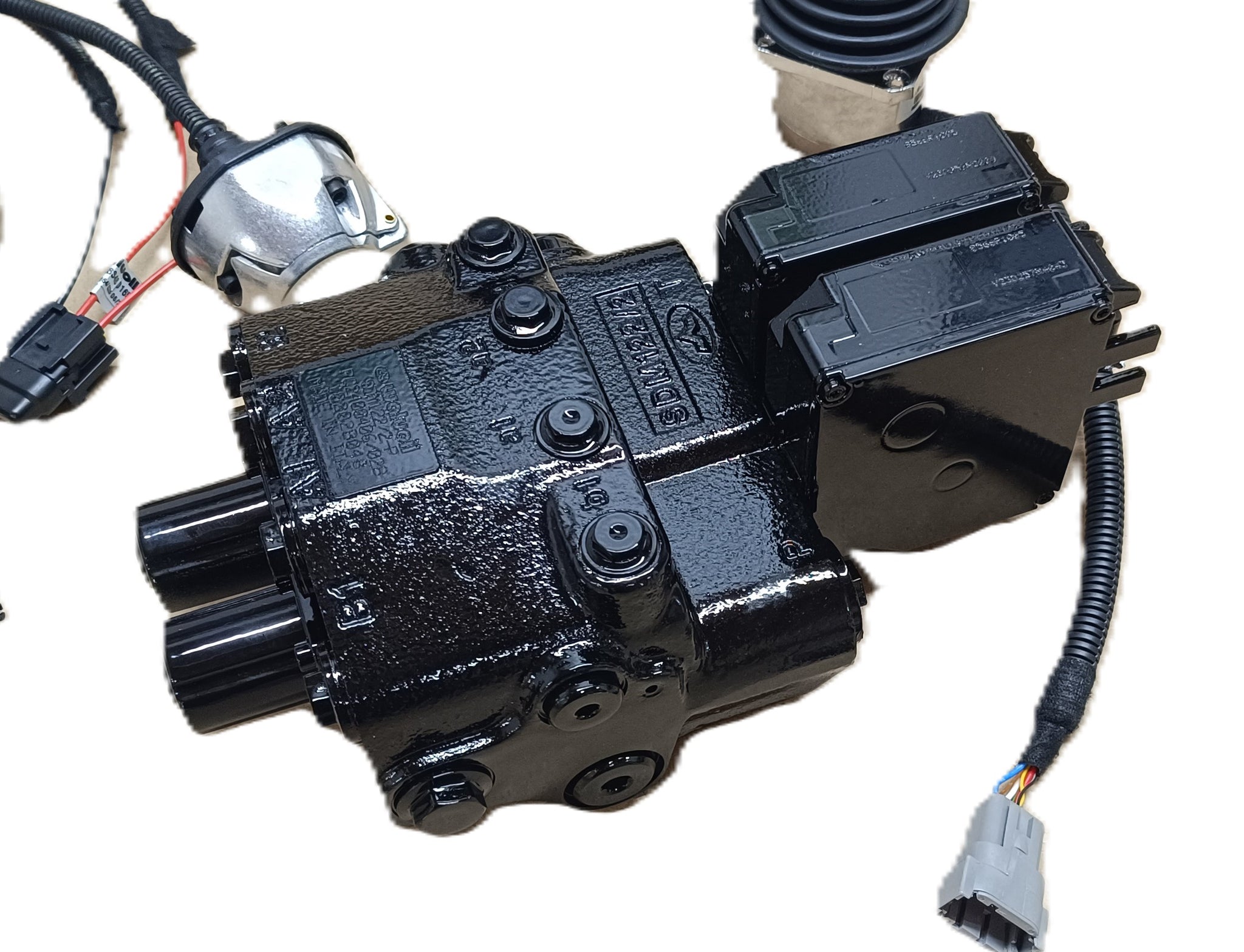

The valve is the load-sensing version, but the constant current version for older tractors is also available on request.
The sections are protected from each other with check valves so that they cannot influence each other.

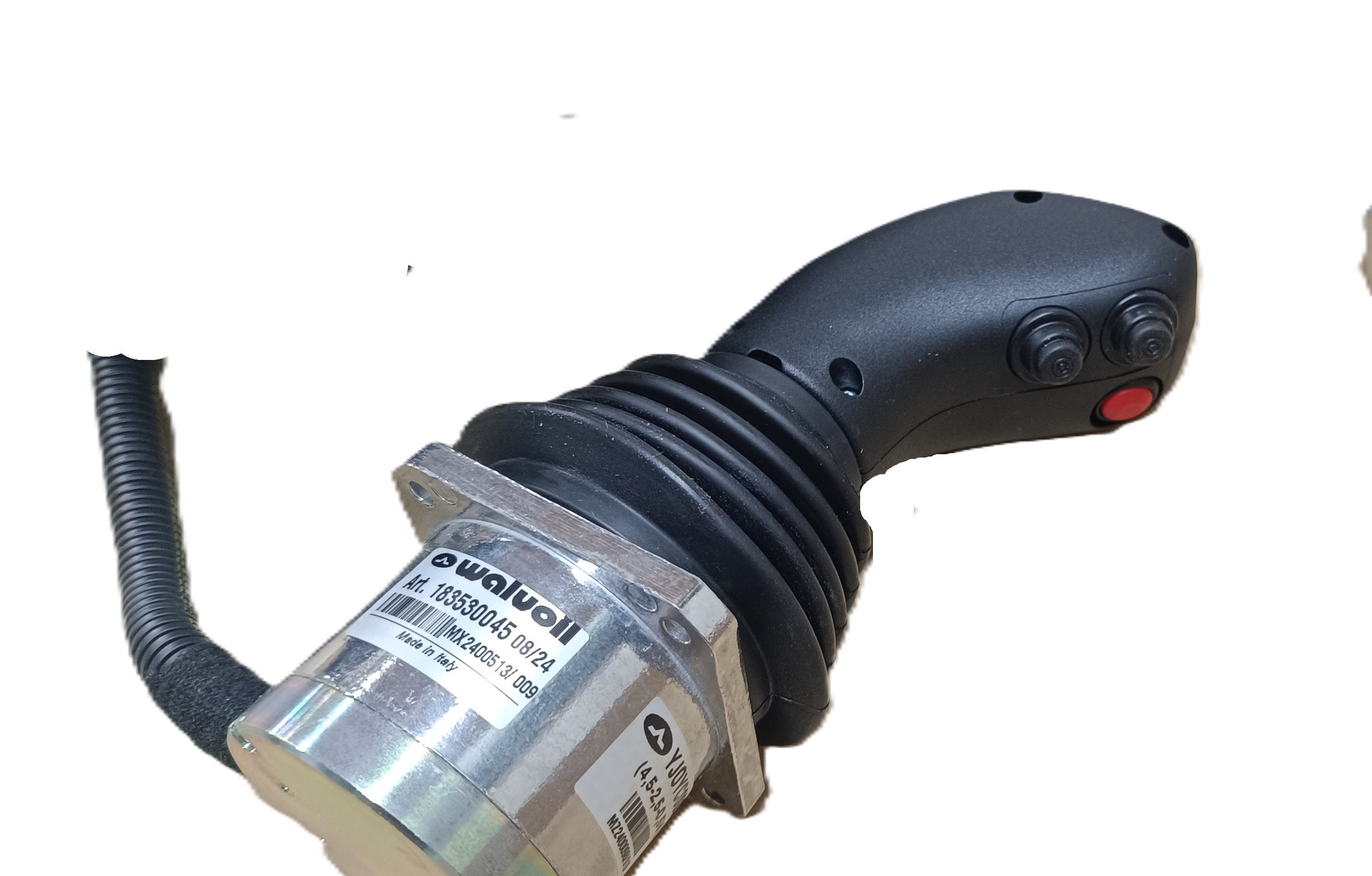

Buttons for the 3rd and 4th control circuits are integrated into the joystick, which pass on a signal to the socket of the cable set.
A vehicle fuse is also integrated into the cable set.
1st section: double-acting
4/4-way - middle position: A+B closed - detent in floating position
2nd section: double-acting
4/3-way - middle position: A+B closed - spring centered in 0
Technical data:
max. operating pressure: 250 bar
Nominal volume flow: 80 l/min
max. return pressure: 10 bar
Connections P/T: 3/4" BSP
Connections A+B: 1/2" BSP ng
The set includes a joystick, valve and the associated cable set.
These are very high quality OEM components from Walvoil.
The valve is the load-sensing version, but the constant current version for older tractors is also available on request.
The sections are protected from each other with check valves so that they cannot influence each other.
Buttons for the 3rd and 4th control circuits are integrated into the joystick, which pass on a signal to the socket of the cable set.

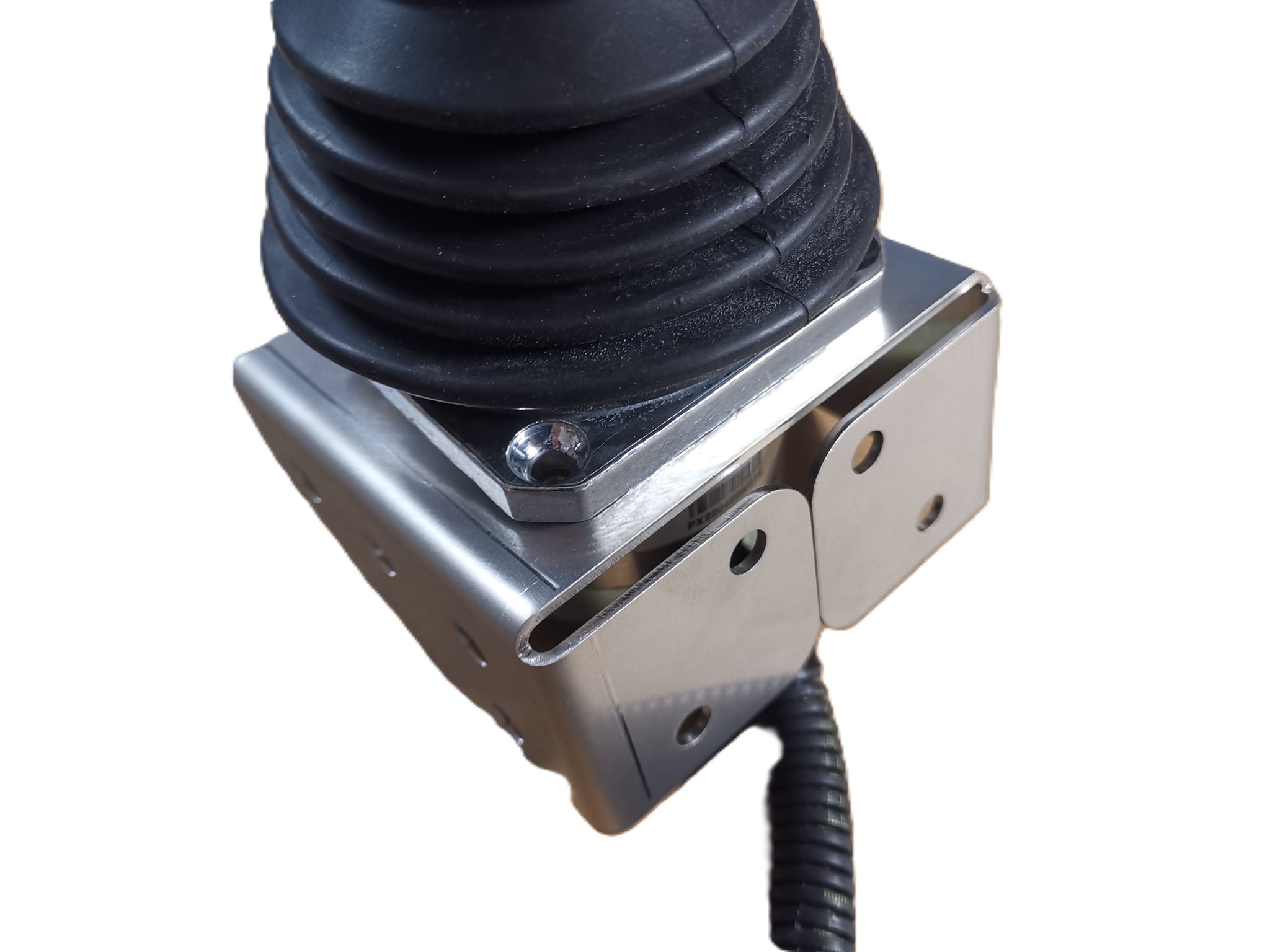

A stainless steel holder for the joystick is included in the set.
A vehicle fuse is also integrated into the cable set.
1st section: double-acting
4/4-way - middle position: A+B closed - detent in floating position
2nd section: double-acting
4/3-way - middle position: A+B closed - spring centered in 0
Technical data:
max. operating pressure: 250 bar
Nominal volume flow: 80 l/min
max. return pressure: 10 bar
Connections P/T: 3/4" BSP
Connections A+B: 1/2" BS
In the constant current version, the valve comes with pressure transfer (but can also be designed as an open or closed center version if required).
