3-way flow control valve with integrated pressure relief valve
3-way flow control valve with integrated pressure relief valve
3-way flow control valve with integrated pressure relief valve
3-way flow control valve with integrated pressure relief valve
3-way flow control valve with integrated pressure relief valve

3-way flow control valve with integrated pressure relief valve

Fluidpress

Tax included. Shipping calculated at checkout.
Adjustable flow control valves with pressure relief valves are offered here.
The controller is adjusted using the handwheel on the top.

The excess electricity is returned directly to the tank.
At the same time, the flow control valve protects the prioritized volume flow against overpressure using a pressure relief valve.

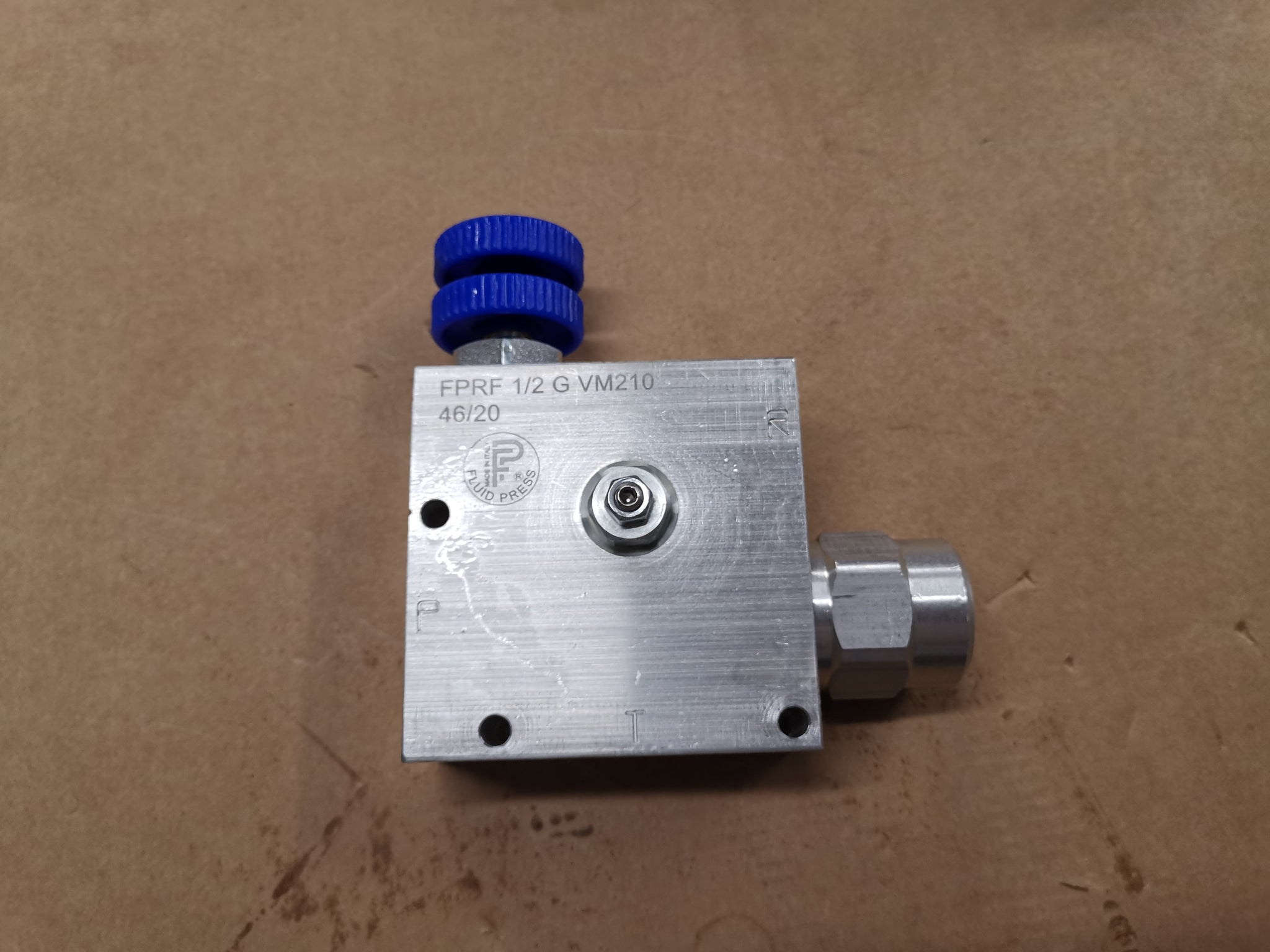

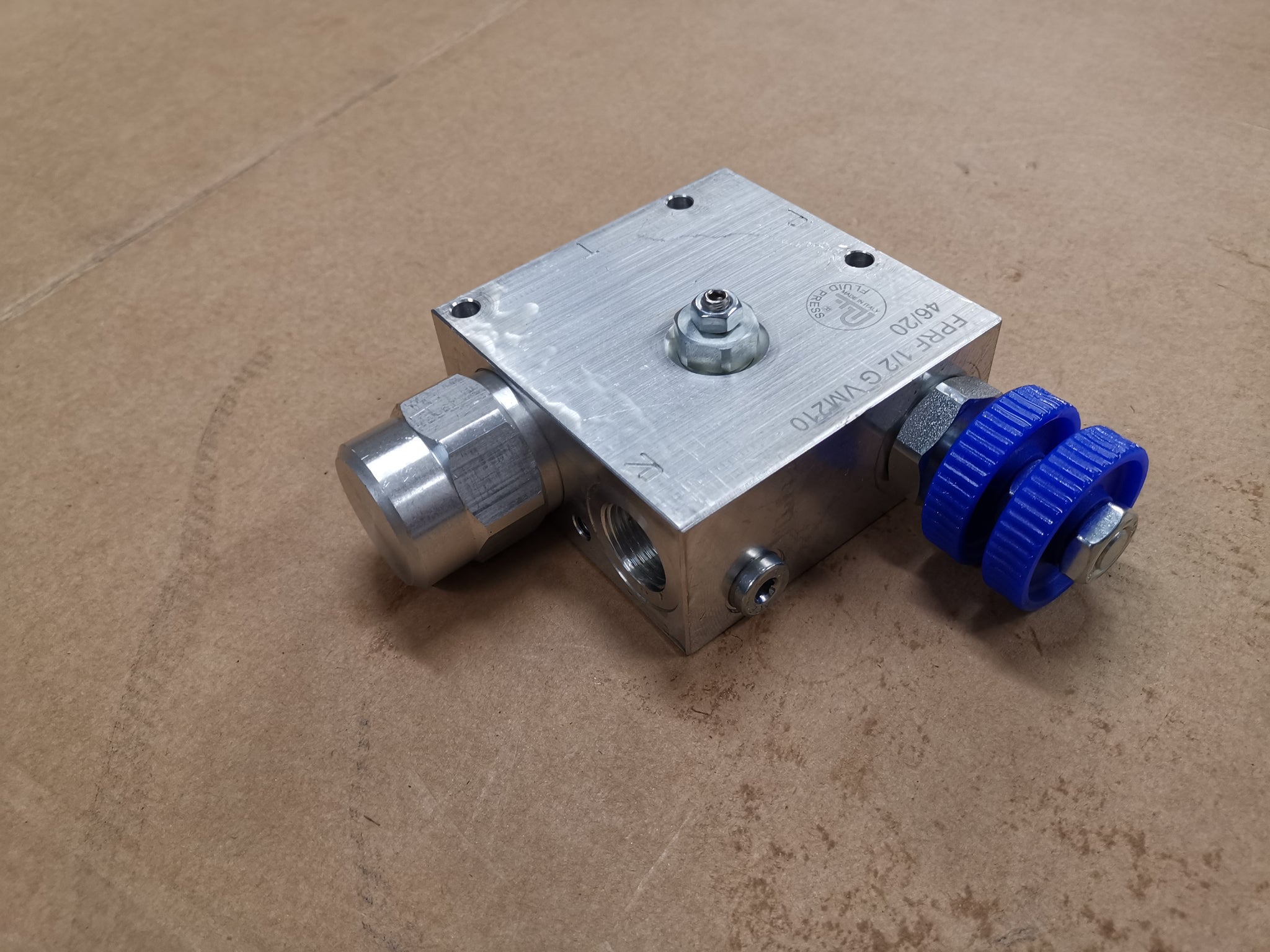

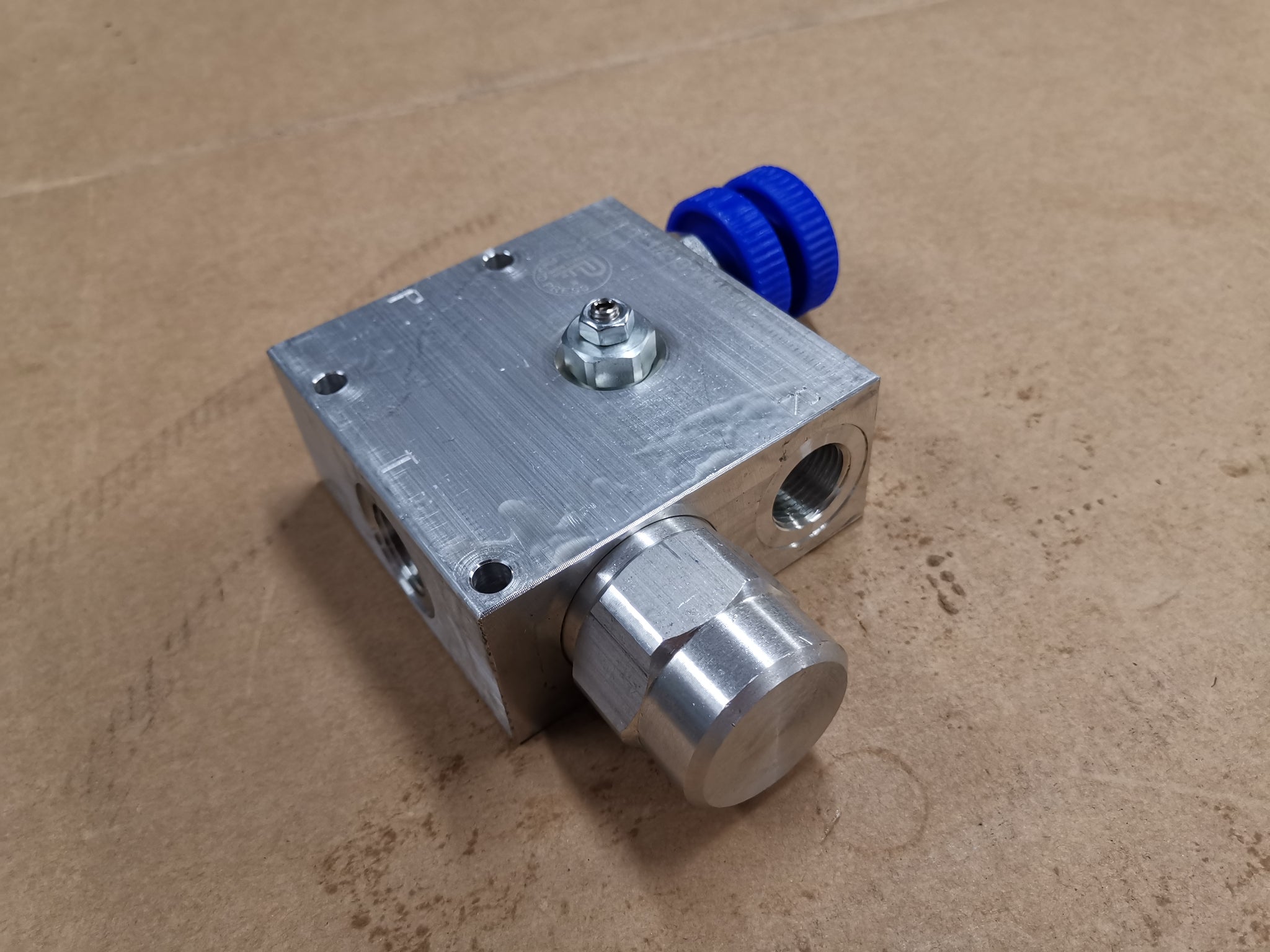

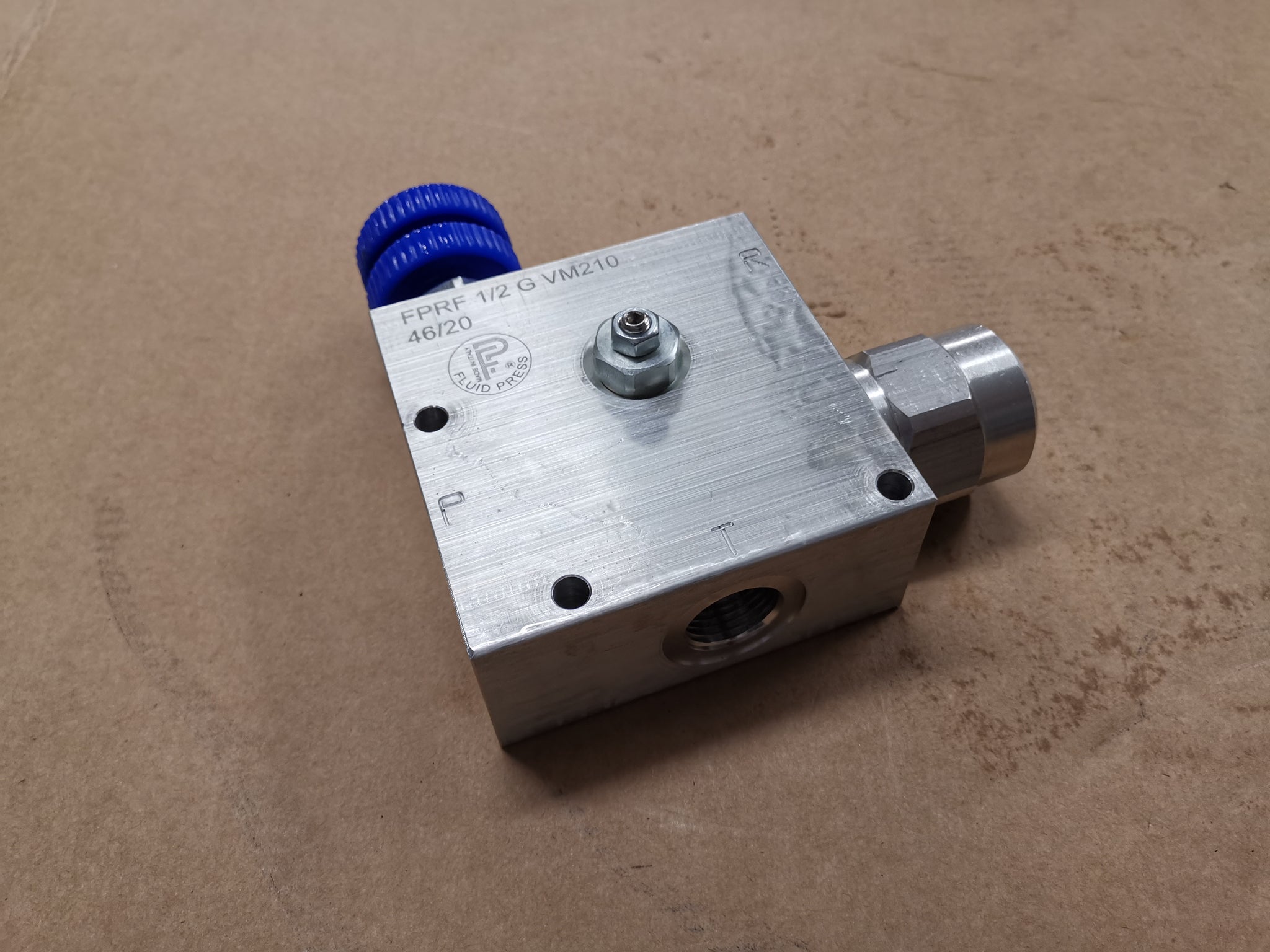

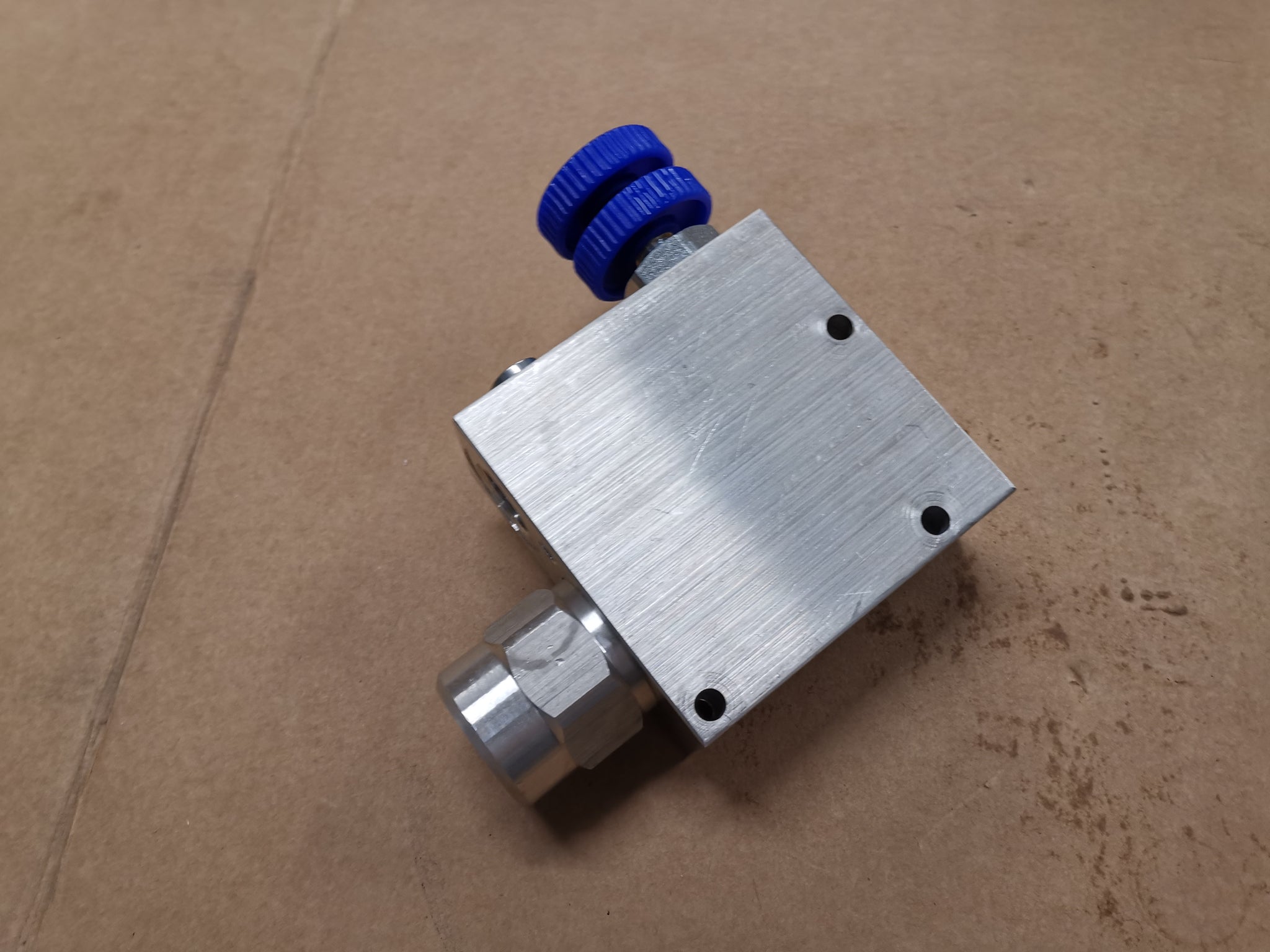

Type: FPRF1/2GVM210

Technical data:
Maximum pressure: 250 bar
Adjustable pressure on the DBV: 85-260 bar
Maximum input volume flow: 90 l/min
Maximum regulated volume flow: 50 l/min
Working connections: 1/2" BSP
